PRO SERIES
LABORATORY ANALYTICAL BALANCE RBS MSW-903
This is a small description
- Selection support
- Configuration guidance for your application
- Delivery
- Pan-India coordination from Mohali
- After-sales
- Installation, calibration and maintenance support
Product details
Features and construction
Wide Range of Application
- Widely used in medical and health, medicinal materials testing, school and enterprises, laboratories, jewelry and gold measurement.
Humanization Design

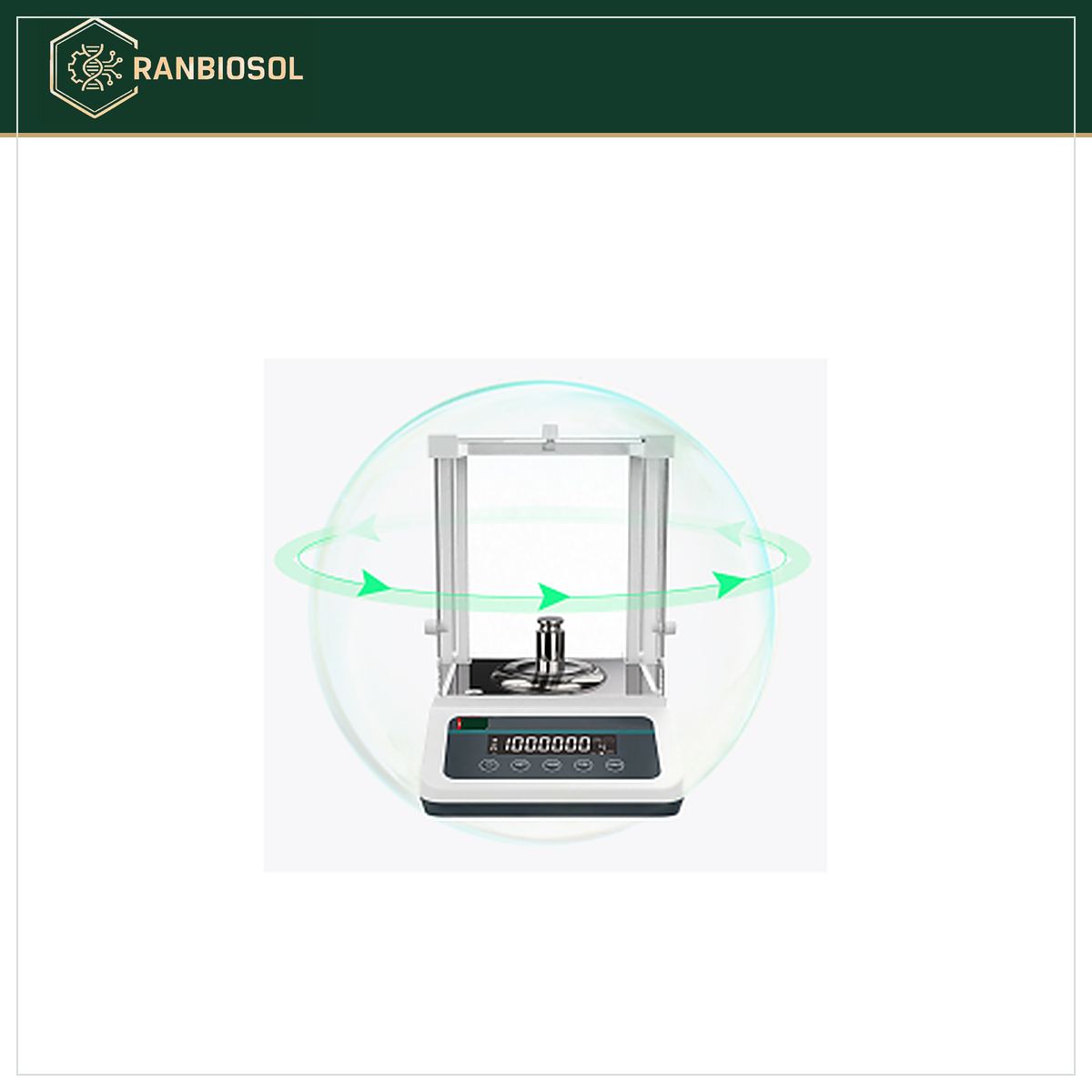

- 360° glass windshield for more accurate measurement results.
Description

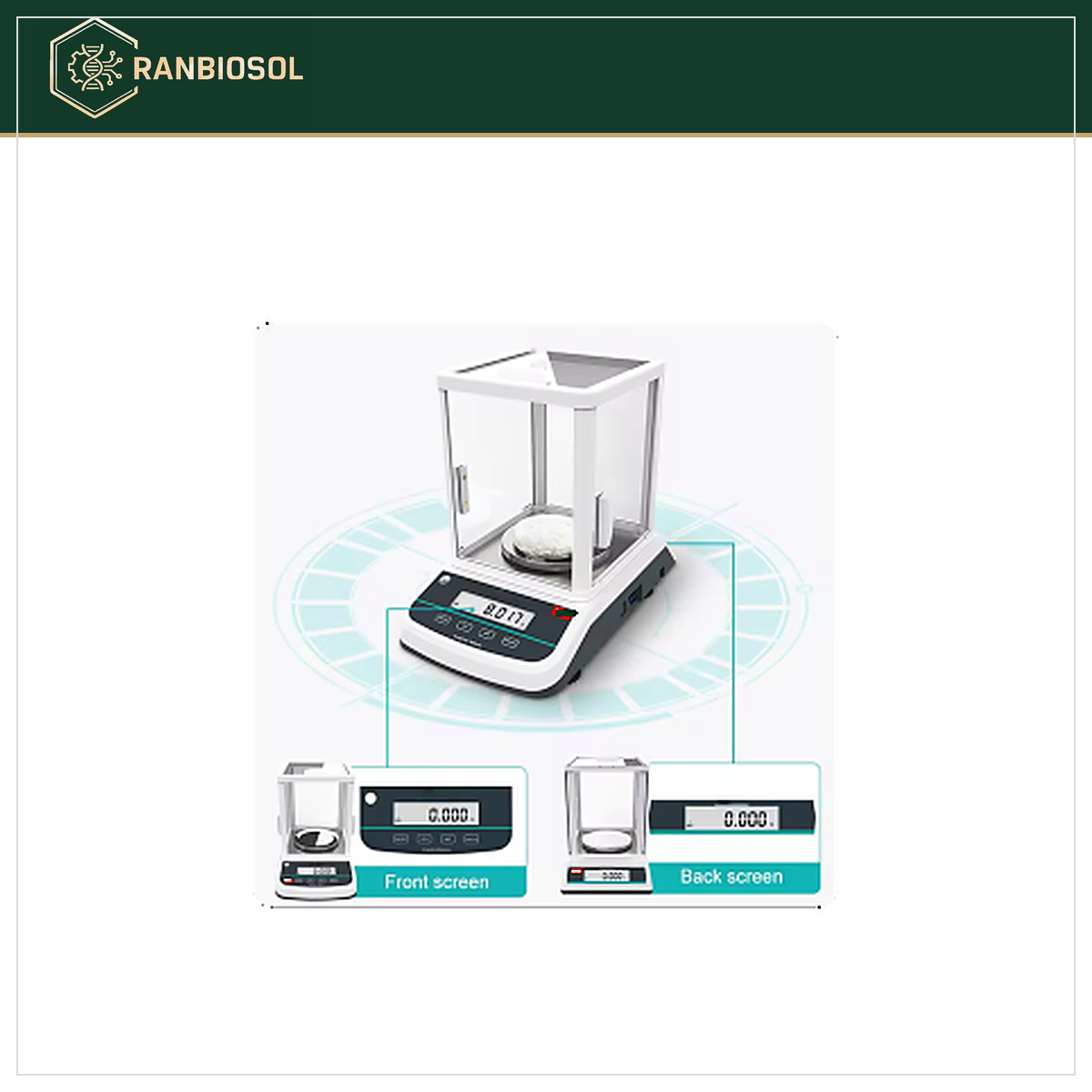

- Accurate and Stable + Dual Screen Display: Fully enclosed glass windshield, effectively reduce the impact of the environment on the weighing result, more accurate results.
- Standard RS-232 Connector: Could be connected with printers, computers and other external equipment, easy data processing, simplify the process.

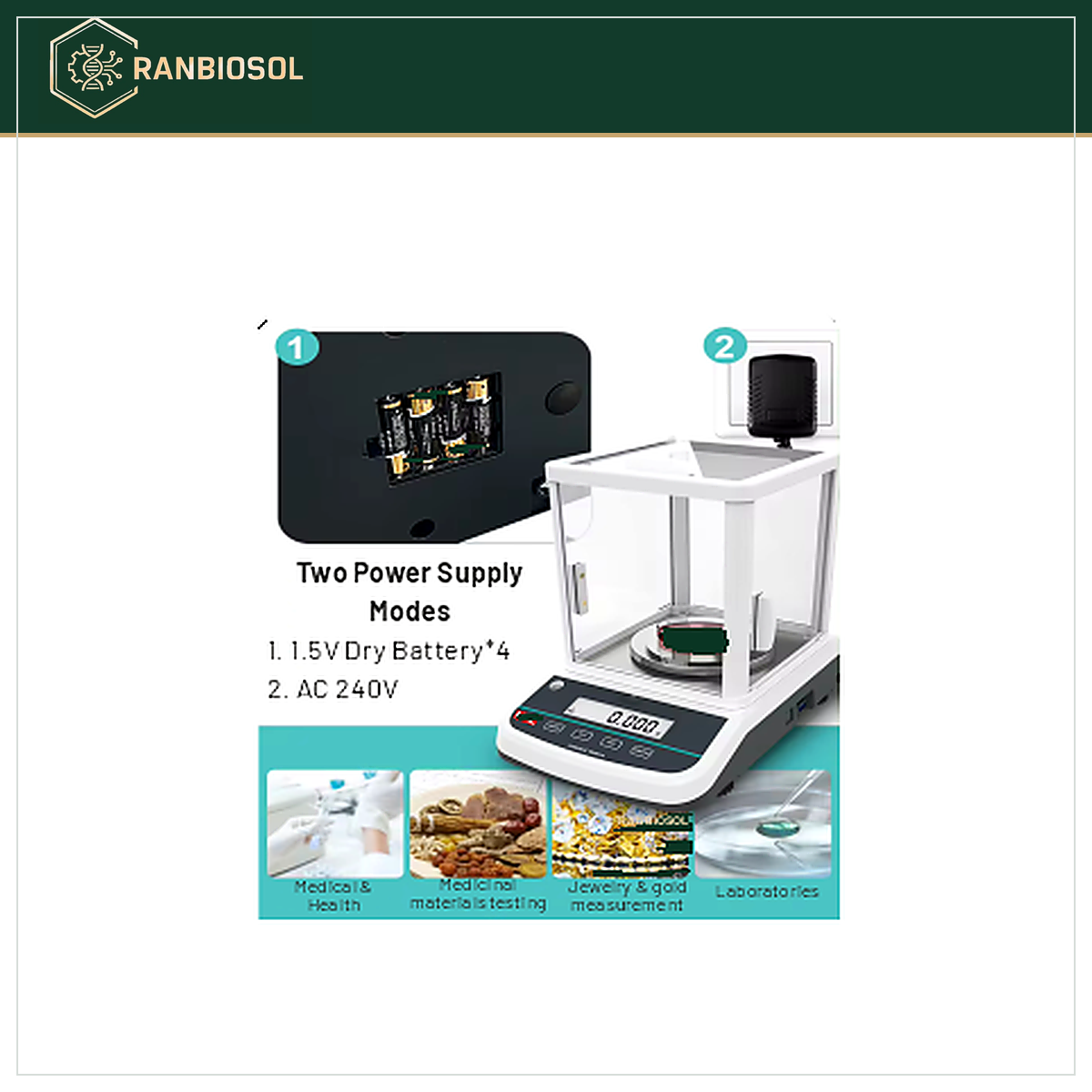

- DC and AC dual-use, Wider Application Range: Can be plugged in or used with batteries, widely uses in medical and health care, medicine testing, schools and enterprises, laboratories, Jewellary and gold measurement, etc.
- Power Saving Mode: Built-in power saving mode, can set the automatic screen off time, Energy saving and environmental protection.
Working Panel Details
- 1. Zero mark and stability mark disappear after the balance weighing reaches stability
- 2. Zero mark
- 3. Sign of negative number
- 4. Tare sign, displayed when the tare weight exceeds 4% of the balance capacity
- 5. Battery level indicator
- 6. Optional units 6(g/kg/ct/TAR/dr/PKT/GN/TMR/gsm/tlJ/mo/dwt/oz/ib/tlT/ozt/tlH/%)
- 7. Power key
- 8. Counting key
- 9. Switch key
- 10. Tare / Calibration key
Technical data
Specifications and models
| Model | #RBS ABFA-220(I) | ||
|---|---|---|---|
| Max Capacity | 220g | ||
| Accuracy Class | (I) | ||
| Min Readout | 0.01g | ||
| Accuracy | 0.1mg | ||
| Repeatability | ±0.002g | ||
| Linearity Error | ±0.003g | ||
| Stability Time | ≤3S | ||
| Working Temperature | 15°C ~ 35°C | ||
| Pan Size | Ø80mm | ||
| Dimensions | 300 x 200 x 295 mm | ||
| Power Supply | Power Adapter | ||
| Calibration Mode | External Calibration, Internal Calibration | ||
| Communication Interface | RS – 232 | ||
| Model | #RBS LBFA-200(E) | #RBS LBFA-300(E) | #RBS LBFA-500(E) |
| Max Capacity | 200g | 300g | 500g |
| Accuracy Class | (II) | ||
| Min Readout | 20mg | ||
| Accuracy | 0.001g | ||
| Repeatability | ±0.0002g | ||
| Linearity Error | ±0.0002g | ||
| Pan Size | Ø90mm | ||
| Dimensions | 320 x 195 x 280 mm | ||
| Power Supply | Power Adapter & 1.5V Dry Battery*4 | ||
| Calibration Mode | External Calibration | ||
