PLANT GROWTH CHAMBER

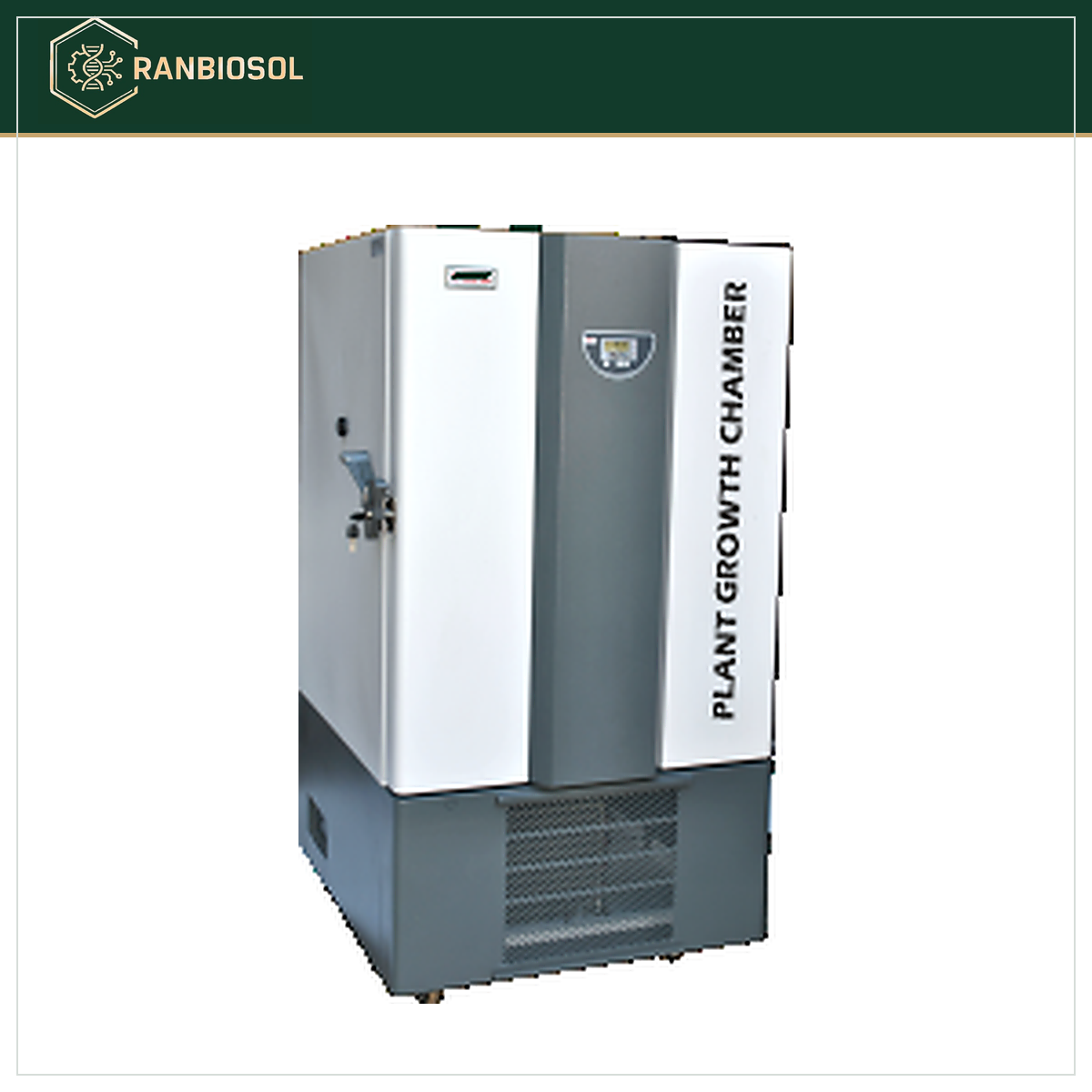

PLANT GROWTH CHAMBER RBS MSW-130
This is a small description
- Selection support
- Configuration guidance for your application
- Delivery
- Pan-India coordination from Mohali
- After-sales
- Installation, calibration and maintenance support
Product details
Features and construction
Description
- Many area of plant research require the use of a controller environment. In this way, a plant’s response to different conditions can be monitored, or a particular habitat imitated. Standard propagation techniques can be greatly speeded up using a growth cabinet as well as achieving a higher success rate. Where micro propagation is being used a growth cabinet is essential for rooting the plantlets and adapting them to normal conditions. This plant growth cabinet is ideal for all routine propagation and research applications.
- With a solid see thru double walled door and a full view inner plexi-glass door enables inspection and monitoring of inner chamber specimens without distributing the process temperature.
- Excellent quality magnetic gum packing door gasket for external door.
- User-oriented design of shelves makes you adjust each space of shelves without difficulty.
- Forced air circulation at triple walled back by durable coaxial blower, maintains optimum temperature uniformity and homogeneity.
- Foamed-in-place PUF insulation ensures thermal stability and reduces electrical energy consumption.
- Caster wheel mounted for easy portability.
- Front double walled door is provided with lock and key arrangement.
- Door operated illumination lamp is fitted inside the chamber for easy visibility.
- Finned tube evaporator facilitates uniform and faster cooling effects.
- Fitted with exterior illumination with fluorescent tubes/lamps.
- Works on 220/230 Volts AC (50/60 Hz frequency).
TECHNICAL SPECIFICATIONS & ORDERING INFORMATIONS
- Type: Forced Convection Type.
- Freezer Compressor: Hermetically sealed air cooling compressor system.
- Temperature Range: 10°C to 60°C.
- Temperature Accuracy: ±1°C.
- Humidity Creation: Through sophisticated steam injection process.
- Humidity Range: 5% above ambient from 40% to 95%RH at cool temperatures.
- Humidity Accuracy: ±3-5%RH.
- MOC Outer: CRC Sheet duly powder coated.
- MOC Inner: Chamber and trays made of Stainless Steel (SS-304).
- Insulation: Foamed-in-Place PUF insulation ensures thermal stability and reduces electrical energy consumption.
- Illumination: Exterior illumination with fluorescent tubes/lamps.
- Temperature Controller: Microprocessor based Digital Temperature Indicator-cum-controller with LCD display OR TFT Touch Screen Display Controller (as ordered)
- Humidity Controller: Digital Temperature Humidity Indicator-Cum-Controller.
- Electrical Supply: 220/230V AC, 50/60Hz
Technical data
Specifications and models
| Specification | MICROPROCESSOR DIGITAL CONTROLLER WITH LCD DISPLAY | |||
|---|---|---|---|---|
| Model | Display Type | Chamber Capacity | Chamber Volume | No of shelves |
| #RBS PGC-4(LCD) | LED | 112 ltrs. | 4.0 Cuft | 2 |
| #RBS PGC-6(LCD) | LCD | 171 ltrs. | 6.1 Cuft | 2 |
| #RBS PGC-10(LCD) | LCD | 285 ltrs. | 10.0 Cuft | 3 |
| #RBS PGC-12(LCD) | LCD | 340 ltrs. | 12.0 Cuft | 3 |
| #RBS PGC-16(LCD) | LCD | 450 ltrs. | 16.0 Cuft | 4 |
| #RBS PGC-20(LCD) | LCD | 560 ltrs. | 20.0 Cuft | 4 |
| #RBS PGC-28(LCD) | LCD | 800 ltrs. | 28.0 Cuft | 6 |
| #RBS PGC-35(LCD) | LCD | 1000 ltrs. | 35.0 Cuft | 6 |
| Specification | TFT TOUCH SCREEN DISPLAY CONTROLLER | |||
| Model | Display Type | Chamber Capacity | Chamber Volume | No of shelves |
| #RBS PGC-4(TFT) | LED | 112 ltrs. | 4.0 Cuft | 2 |
| #RBS PGC-6(TFT) | TFT | 171 ltrs. | 6.1 Cuft | 2 |
| #RBS PGC-10(TFT) | TFT | 285 ltrs. | 10.0 Cuft | 3 |
| #RBS PGC-12(TFT) | TFT | 340 ltrs. | 12.0 Cuft | 3 |
| #RBS PGC-16(TFT) | TFT | 450 ltrs. | 16.0 Cuft | 4 |
| #RBS PGC-20(TFT) | TFT | 560 ltrs. | 20.0 Cuft | 4 |
| #RBS PGC-28(TFT) | TFT | 800 ltrs. | 28.0 Cuft | 6 |
| #RBS PGC-35(TFT) | TFT | 1000 ltrs. | 35.0 Cuft | 6 |
