PRO SERIES

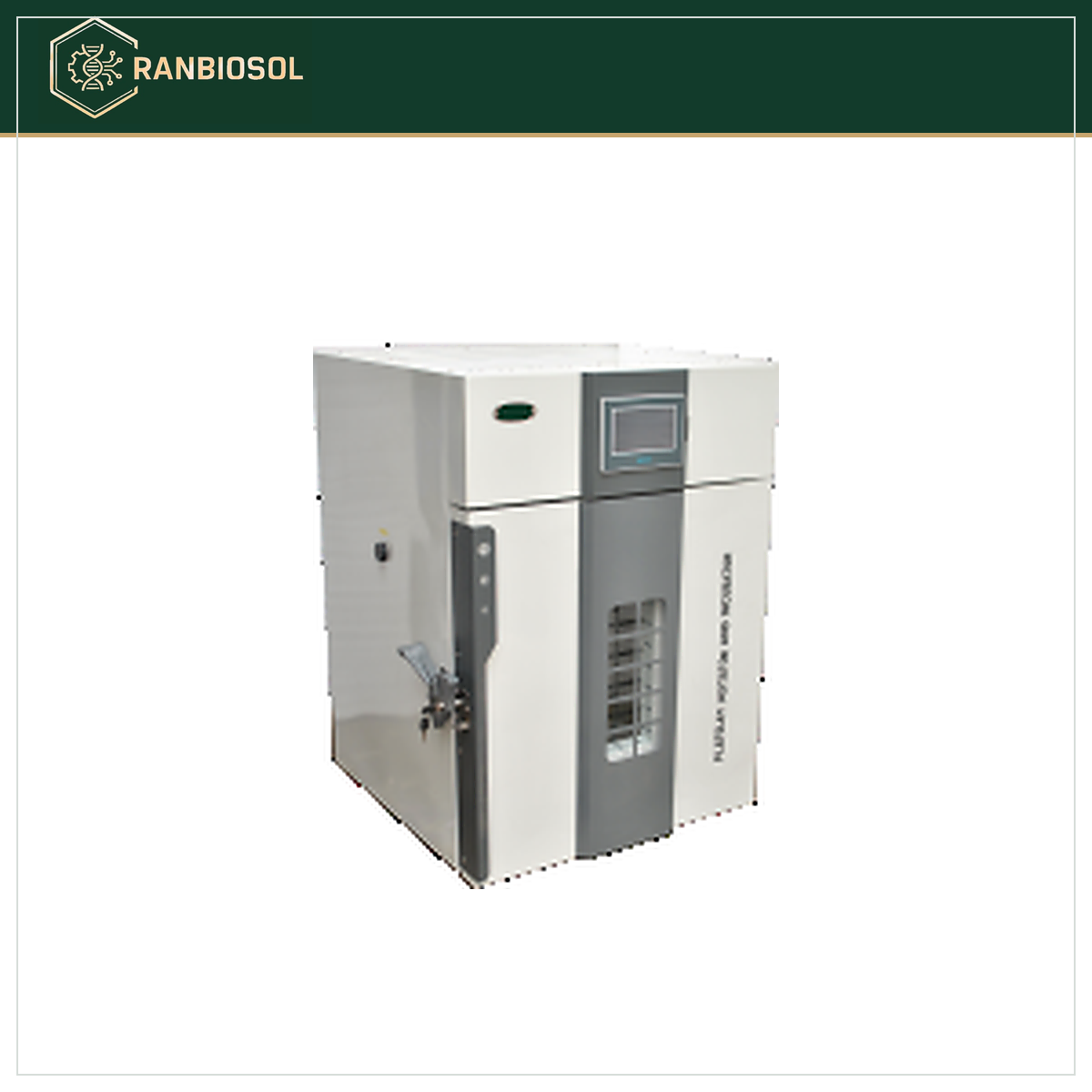

PLATELET INCUBATOR RBS MSW-143(PRO)
This is a small description
- Selection support
- Configuration guidance for your application
- Delivery
- Pan-India coordination from Mohali
- After-sales
- Installation, calibration and maintenance support
Product details
Features and construction
APPLICATION
- Ranbiosol has reinvented the best storage possibilities for the Platelet concentrates. Ranbiosol Platelet Incubator and agitator provide excellent storage of Blood Platelets with superior uniformity, outstanding reliability and highest precision.
SALIENT FEATURES
- Suitable for Platelet storage in blood banks.
- Powder coated steel exterior for attractive looks & longer life.
- Transparent front toughened glass door for easy inspection.
- Easy to use control panel positioned perfectly.
- Microprocessor Controlled operation.
CONSTRUCTION & SPECIFICATION
- Double walled construction.
- Exterior of the cabinet is Mild Steel duly powder coated.
- Inner chamber is made up of Stainless Steel (SS-304 grade).
- Insulated double walled door has integrated see thru toughened glass window.
- Fitted with silicon door gasket.
- Seamless rounded back edges of internal work chamber and semi circular arcs at corner ensures easy clean up.
- Uniform temperature is maintained throughout the inner chamber with the help of forced air circulator.
- Safety thermostat is provided for safety against above extreme condition.
- Fitted with swivel castors for easy movement.
- Highly efficient and reliable refrigeration system for fast cooling.
- Finned evaporator for more effective cooling and faster temperature recovery.
- Equipped with a built in circular chart recorder for recording the temperature data.
- With specially designed platform to hold platelet agitator.
SAFETY
- Battery backup is provided for display of chamber temperature in case of power failure and for chart recorder.
- High/low temperature deviation alarm, sensor failure alarm & power failure alarm.
- Features auto stop/start function for agitator in case incubator door is opened.
Technical data
Specifications and models
| Model | #RBS PLI-154 | #RBS PLI-248 |
|---|---|---|
| No. of Agitators | 1 x 54 Bags (Not Included) | 2 x 48 Bags (Not Included) |
| MOC (Inner) | Stainless Steel (SS-304 grade) | |
| MOC (Outer) | CRC sheet duly powder coated | |
| Door | Single door embedded with toughened glass window | |
| Insulation | High grade foamed in place PUF insulation | |
| Caster Wheel | Swivel castor wheels are provided for easy movement | |
| Temperature Controller | TFT Touch Screen Display Controller | |
| Temperature Range | Preset 22°C ± 1°C | |
| Safety Alarm | Power failure alarm, Hi Low Temperature Deviation Alarm, Door Open, Low Battery Alarm | |
| Data Recorder | In built Circular Chart Recorder in TFT for Digital Data Recorder | |
| Battery Backup | Rechargeable backup in case & power failure for: Temperature Display, Alarm System, Chart Recorder | |
| Electric Supply | 230 Volts 50Hz, Single Phase | |
