WATER BATH

REFRIGERATED CIRCULATING LIQUID / WATER BATH RBS MSW-270(R)

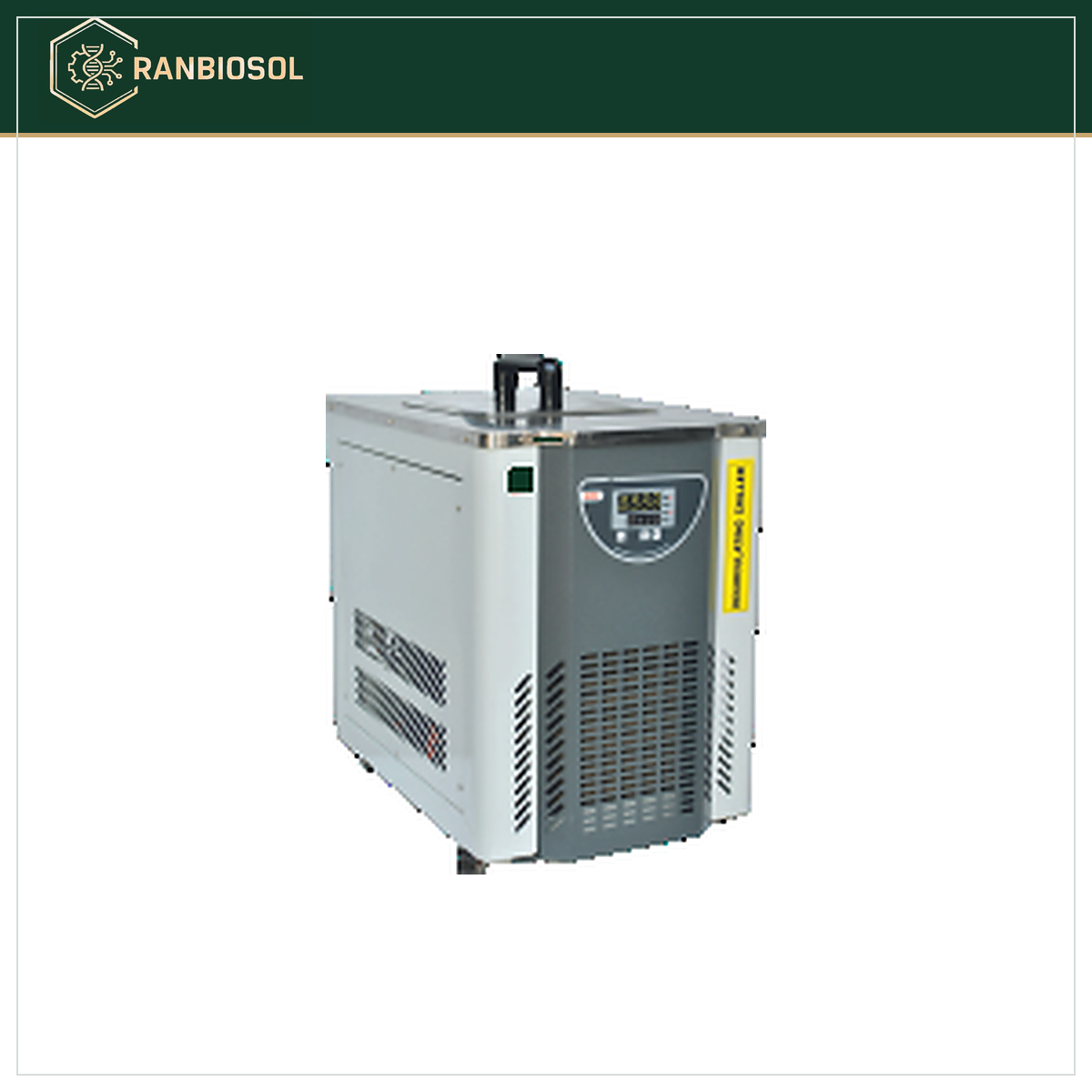

Name: REFRIGERATED CIRCULATING LIQUID / WATER BATH RBS MSW-270(R)
Brand: Ranbiosol

This is a small description

Product details

Features and construction

Most ideal for external temperature control applications to external systems such as Rotary Vacuum Evaporators, Refractometers, Polarimeters, Fermenters, Electrophoresis Chamber, Chromatography Columns, Condensers, Rheometers, and general laboratory cooling applications.

A compact refrigerated circulator.
Eliminates the hassles of using a separate Bath & a separate Chiller.
Builts in circulator pump for efficient circulating processes.
It offers highest level of performance, flexibility and control for the most demanding applications.
Low noise level.
Wide operating ranges and applications.

Inner bath chamber & lid made of Stainless Steel (SS-304 Grade).
Outer body made of CRC Sheet duly powder coated.
Space between inner and outer chamber filled with high grade PUF insulation for minimal thermal losses.
High Condensation efficiency.
Adjustable working temperature ranges available.
Environment friendly CFC FREE refrigerants and hermetically sealed compressor used.
Reduces tap water consumption thus reducing high cost of water and waste water.
Waste water does not contain hazardous substances thus eliminating danger to personnel and environment caused by solvents.

Various temperature ranges available to choose from depending upon varied requirements and applications.
Microprocessor based autotune PID TEMPERATURE CONTROLLER
Tighter cooling control for reduced energy consumptions.
Internal circulation enables precise temperature stability/uniformity in the bath. (at zero delta, at 37°C)
Temperature Display Resolution 0.1°C.
Powerful stirring circulation pump with 10-12 Lpm capacity at zero head for water.
Do not use water below 5°C (use ethanol below 5°C).
Do not use water above 90°C (use silicone oils etc above 90°C).
To work on 220/230 volts, 50/60 Hz AC supply.

Technical data

Technical specifications & ordering information
MODEL	TEMPERATURE RANGE AT ZERO DELTA (At Ambient of 25°C)	APPROX LIQUID FILL CAP./ GROSS TANK CAP.
#RBS RCC-1006	Ambient to -10°C	3 ~ 4 Ltrs. / 6 Ltrs.
#RBS RCC-2006	Ambient to -20°C	3 ~ 4 Ltrs. / 6 Ltrs.
#RBS RCC-1010	Ambient to -10°C	5 ~ 6 Ltrs. / 10 Ltrs.
#RBS RCC-2010	Ambient to -20°C	5 ~ 6 Ltrs. / 10 Ltrs.
#RBS RCC-1015	Ambient to -10°C	8 ~ 9 Ltrs. / 15 Ltrs.
#RBS RCC-2015	Ambient to -20°C	8 ~ 9 Ltrs. / 15 Ltrs.
#RBS RCC-2015(H)	-20°C to +90°C	8 ~ 9 Ltrs. / 15 Ltrs.
#RBS RCC-0525	Ambient to -5°C	14 ~ 15 Ltrs. / 25 Ltrs.
#RBS RCC-1025	Ambient to -10°C	14 ~ 15 Ltrs. / 25 Ltrs.
#RBS RCC-0530	Ambient to -5°C	17 ~ 18 Ltrs. / 30 Ltrs.
#RBS RCC-1030	Ambient to -10°C	17 ~ 18 Ltrs. / 30 Ltrs.
