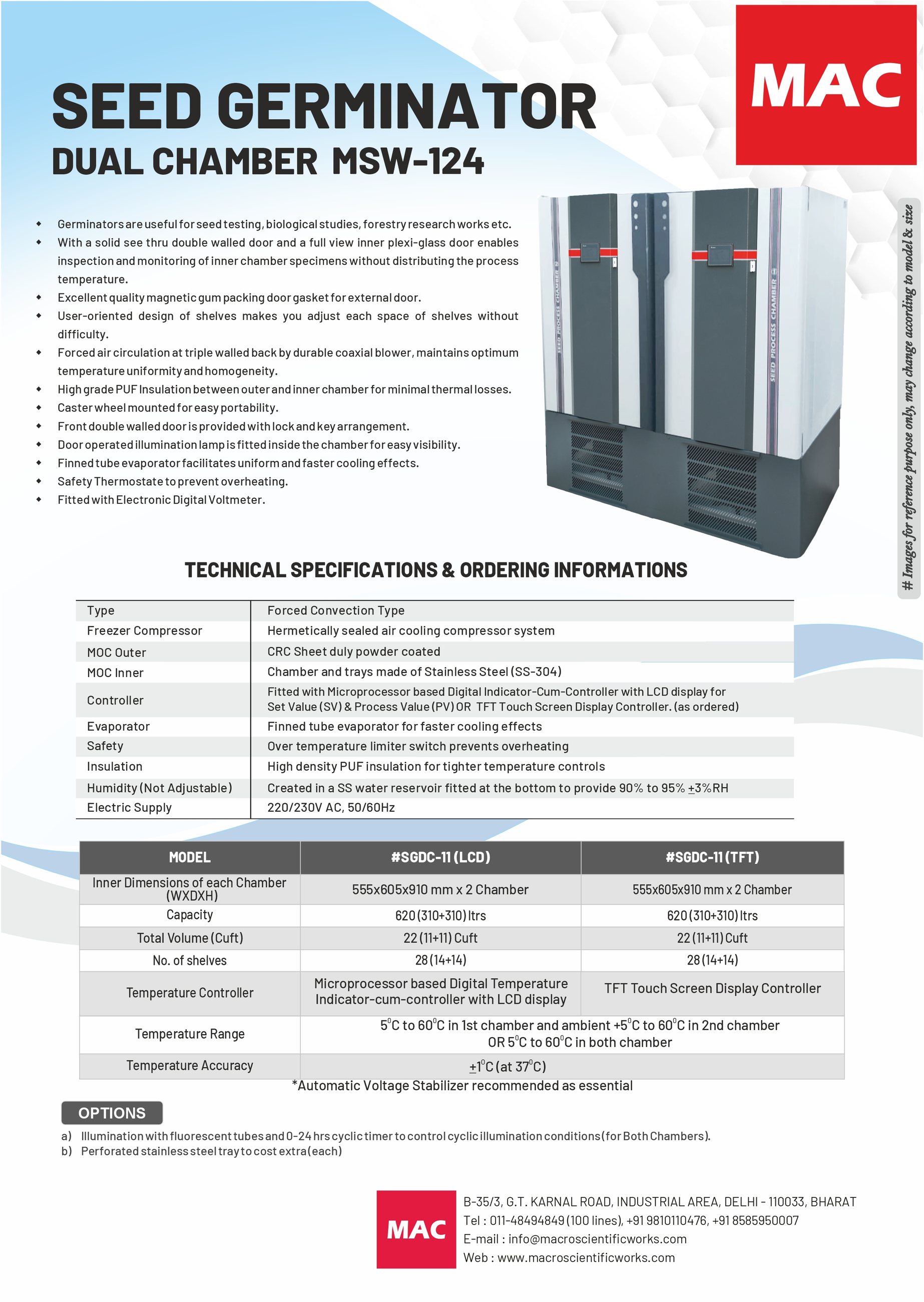

SEED GERMINATOR (DUAL CHAMBER) RBS MSW-124
This is a small description
- Selection support
- Configuration guidance for your application
- Delivery
- Pan-India coordination from Mohali
- After-sales
- Installation, calibration and maintenance support
Product details
Features and construction
features
- Germinators are useful for seed testing, biological studies, forestry research works etc.
- With a solid double walled door and a full view inner plexi-glass door enables inspection and monitoring of inner chamber specimens without distributing the process temperature.
- Excellent quality magnetic gum packing door gasket for external door.
- User-oriented design of shelves makes you adjust each space of shelves without difficulty.
- Forced air circulation at triple walled back by durable coaxial blower, maintains optimum temperature uniformity and homogeneity.
- High grade PUF Insulation between outer and inner chamber for minimal thermal losses.
- Caster wheel mounted for easy portability.
- Front double walled door is provided with lock and key arrangement.
- Door operated illumination lamp is fitted inside the chamber for easy visibility.
- Finned tube evaporator facilitates uniform and faster cooling effects.
- Safety Thermostate to prevent overheating.
- Fitted with Electronic Digital Voltmeter.
TECHNICAL SPECIFICATIONS
- Type: Forced Convection Type
- Freezer Compressor: Hermetically sealed air cooling compressor system
- MOC Outer: CRC Sheet duly powder coated
- MOC Inner: Chamber and trays made of Stainless Steel (SS-304)
- Evaporator: Finned tube evaporator for faster cooling effects
- Safety: Over temperature limiter switch prevents overheating
- Insulation: High density PUF insulation for tighter temperature controls.
- Temperature Controller: Microprocessor based Digital Temperature Indicator-cum-controller with LCD Display for Set Value (SV) & Process Value(PV) OR HMI-PLC TFT Touch Screen Display Controller. (as ordered)
- Humidity (Not Adjustable): Created in a SS water reservoir fitted at the bottom to provide 90% to 95% +3%RH (Not Adjustable)
- Electric Supply: 220/230V AC, 50/60 Hz
options
- Illumination with fluorescent tubes and 0 - 24 hrs cyclic timer to control cyclic illumination conditions. (for Both Chembers)
Technical data
Specifications and models
| Specification | WITH MICROPROCESSOR DIGITAL CONTROLLER WITH LCD DISPLAY |
|---|---|

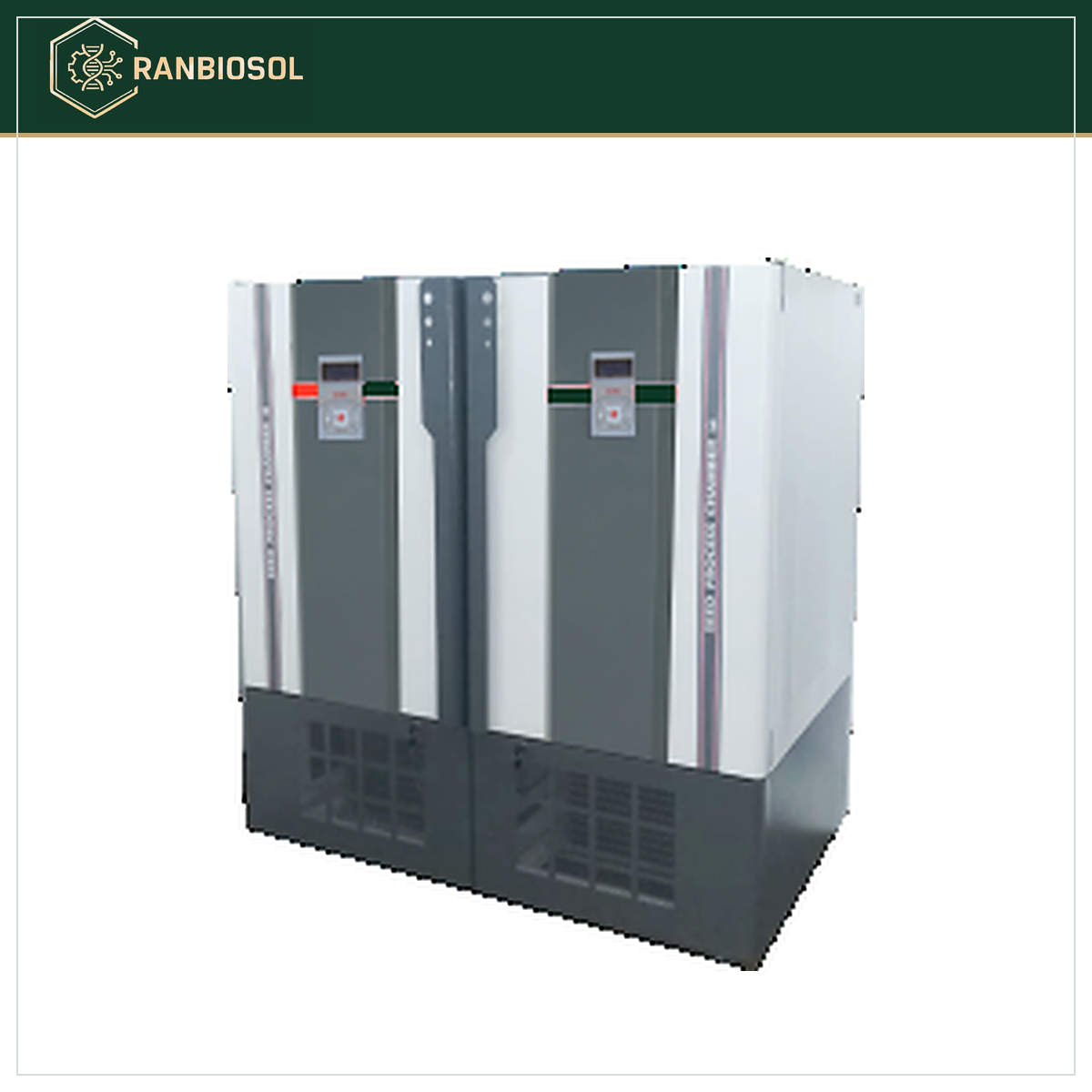

| Model | #RBS SGDC-11(LCD) |
| Internal Dimension (WXDXH) (mm) | 555x605x910 mm x 2 Chamber |
| Capacity | 620 (310+310) ltrs |
| Valume | 22 (11 + 11) Cuft |
| No. of Shelves | 28 (14+14) |
| Temperature Range | 5°C to 60°C in 1st chamber and ambient +5°C to 60°C in 2nd chamber |
| Controller | Microprocessor based PID Digital Temperature Controller with LCD Display |
| Accuracy | ±1°C (at 37°C) |
| Specification | HMI-PLC BASED TFT TOUCH SCREEN DISPLAY CONTROLLER |

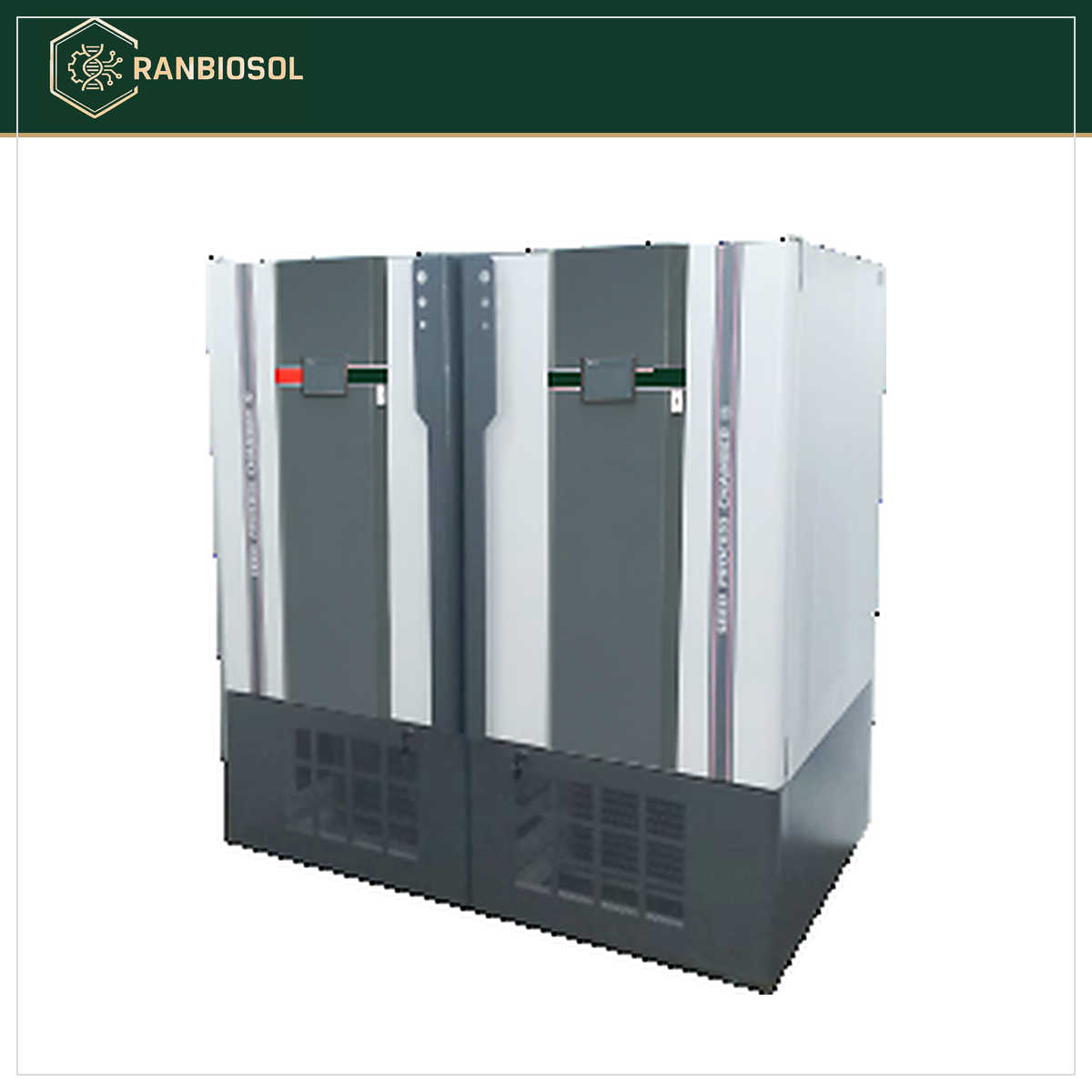

| Model | #RBS SGDC-11(TFT) |
| Internal Dimension (WXDXH) (mm) | 555x605x910 mm x 2 Chamber |
| Capacity | 620 (310+310) ltrs |
| Valume | 22 (11 + 11) Cuft |
| No. of Shelves | 28 (14+14) |
| Temperature Range | 5°C to 60°C in 1st chamber and ambient +5°C to 60°C in 2nd chamber |
| Controller | HMI-PLC BASED TFT TOUCH SCREEN DISPLAY CONTROLLER |
| Accuracy | ±1°C (at 37°C) |
