MINI PCR WORKSTATION

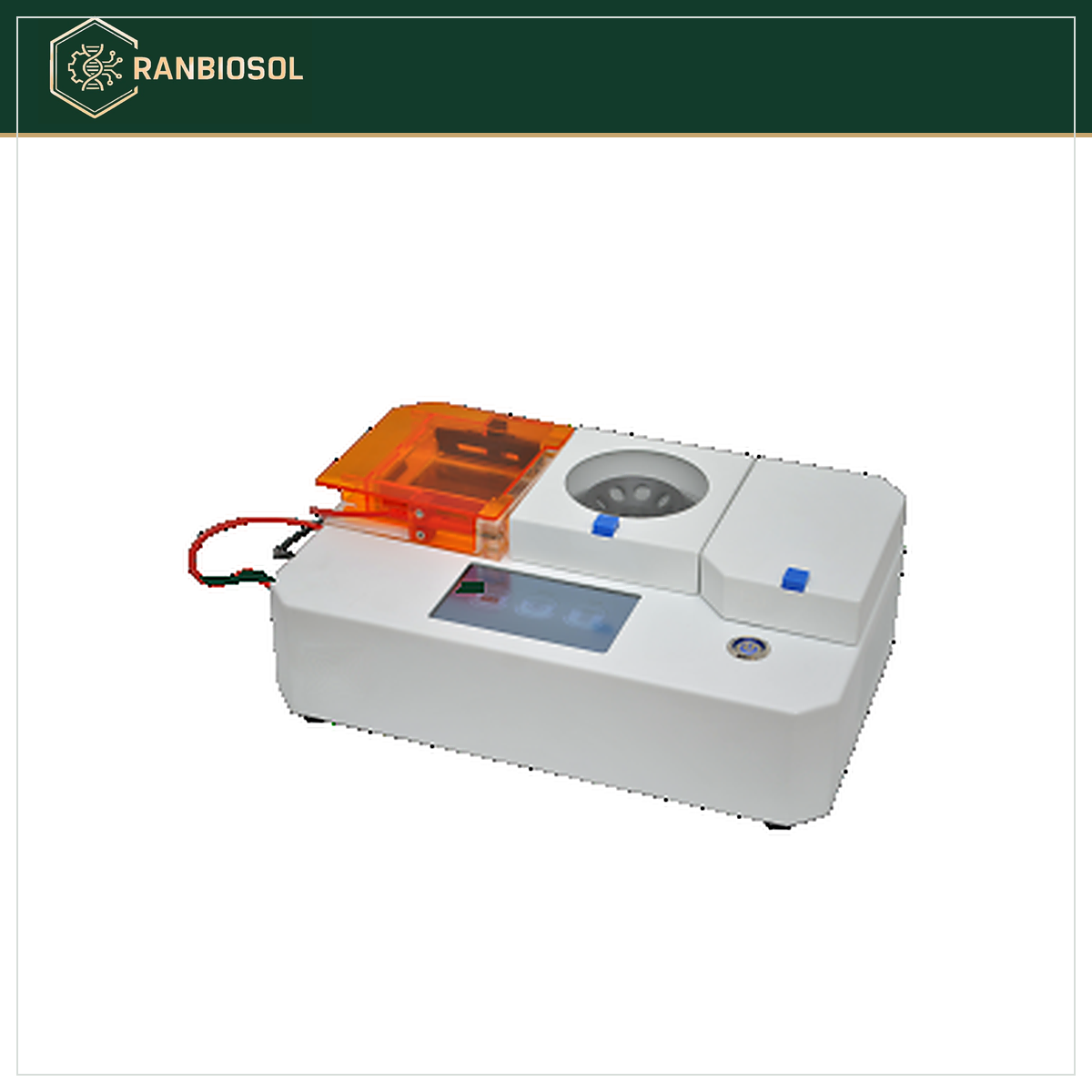

MINI PCR WORKSTATION RBS MSW-443
This is a small description
- Selection support
- Configuration guidance for your application
- Delivery
- Pan-India coordination from Mohali
- After-sales
- Installation, calibration and maintenance support
Product details
Features and construction
470nm Blue Light Transilluminator
- Real-time visualization of DNA bands with 10-step adjustable brightness—safe, efficient, and ideal for sensitive detection without DNA damage.
Horizontal Gel Electrophoresis System
- Accelerated nucleic acid separation with integrated gel casting and imaging—streamlines the workflow from gel preparation to result interpretation.
Mini Centrifuge
- Compact yet powerful with variable speed from 1000 to 7000 rpm, compatible with multiple tube formats including PCR strip tubes and microcentrifuge tubes—ensuring versatility in sample preparation..
32-Well PCR Thermal Cycler
- High-precision isothermal control module with temperature ramp rate up to 3°C/sec, ensuring consistent and reproducible amplification across all wells.
5-Inch Full-Color Touchscreen Interface
- User-friendly interface with intuitive navigation and programming, enabling seamless control over all integrated modules through a single display.
Intelligent System Integration
- Multi-tasking enabled via advanced microcontroller-based orchestration—allowing simultaneous centrifugation, electrophoresis, and PCR to drastically reduce experiment turnaround time.
Technical data
Specifications and models
| Model | #RBS MPW-443 |
|---|---|
| PCR THERMAL CYCLER | Color Touch Screen Display Controller 32x0.2ml PCR tube/ 4x0.2ml 8-strip tube Temp. Range:4°C-105°C |
| MINI CENTRIFUGE | Speed: 7000 rpm Rotor Cap.: 8x0.2/0.5/1.5/2ml tube 32x0.2ml PCR tube 4x0.2ml 8-strip tube Timing Range: 0-59995 |
| HORIZONTAL GEL ELECTROPHORESIS SYSTEM | Gel Tray: 70x70mm Gel Size: 70x70mm Timing Range: 0-59995. |
| TRANSILLUMINATOR | Observation Area: L105xW85mm Wavelength: 470nm Intensity adjustment: 1-10 level |
