MINI PCR WORKSTATION
PCR (GRADIANT THERMAL CYCLER) RBS MSW-444
This is a small description
- Selection support
- Configuration guidance for your application
- Delivery
- Pan-India coordination from Mohali
- After-sales
- Installation, calibration and maintenance support
Product details
Features and construction

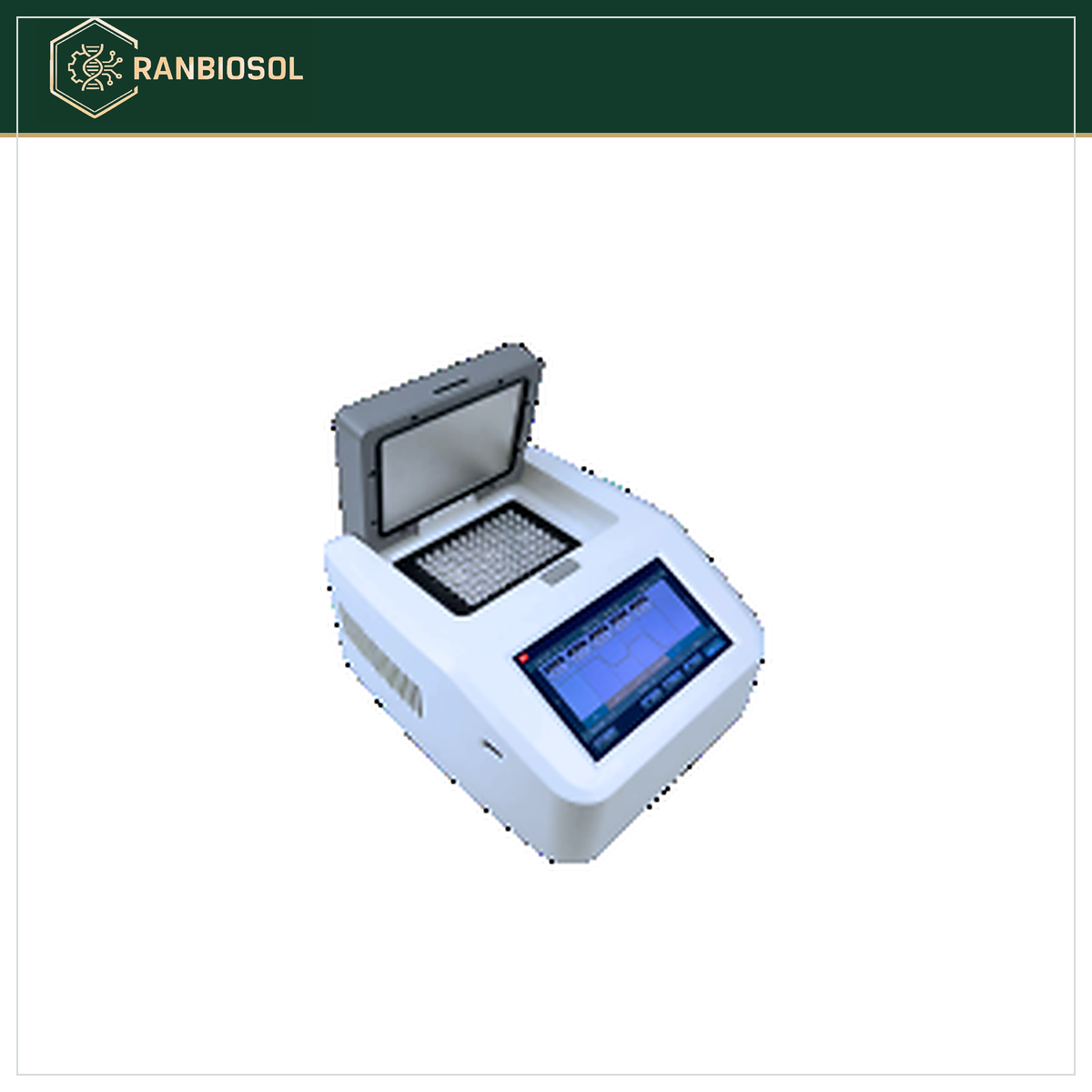

PCR Thermal Cycler
- The thermal cycler is basic instrument in molecular laboratories and is mainly used for gene amplification in scientific research and clinical area, qualitative PCR gene amplification, gene chip or other gene analysis applications. The gradient thermal cycler has gradient function, which can quickly increase and decrease the temperature. lt can achieve temperature uniformity in a single process and can quickly and stably complete polymerase chain reaction (PCR) experiments.
Specification
- Portable and compact design
- Elastic structure hot lid design, adaptable to 96-well microplate or 0.1 /0.2ml PCR tube
- Using high-quality peltier, ensure excellent temperature uniformity
- The heating and cooling rate can reach to 5.5°C/s, saving experimental time
- Humanized standard program file template, which can quickly edit experimental files
- Automatic fault detection and alarm function.
Technical data
Specifications and models
| Model | #RBS TC-96G |
|---|---|
| Temp Mode | Gradient |
| Sample Capacity | 96×0.1/0.2mL PCR tube/96-wells microplate |
| Block Temp Control Range | 4~105°C |
| Hot Lid Temp Control Range | 30~110°C |
| Temp Display Accuracy | ±0.1°C |
| Temp Control Accuracy | ±0.3°C |
| Temp Uniformity | ±0.3°C |
| Max Temp Change Rate | 5°C/s |
| Gradient Setting Range | 30~105°C |
| Gradient Span | 1~42°C |
| Heating Module Material | Aviation aluminum |
| Display | 7-inch color touch screen |
| User Defined File Storage | 676 files |
| Power Outage Protection | Yes |
| Dimension | L270×W240×H150mm |
| Weight | 4.8kg |
| Voltage / Frequency | 100 ~ 240V; 50 / 60Hz |
