WATER BATH

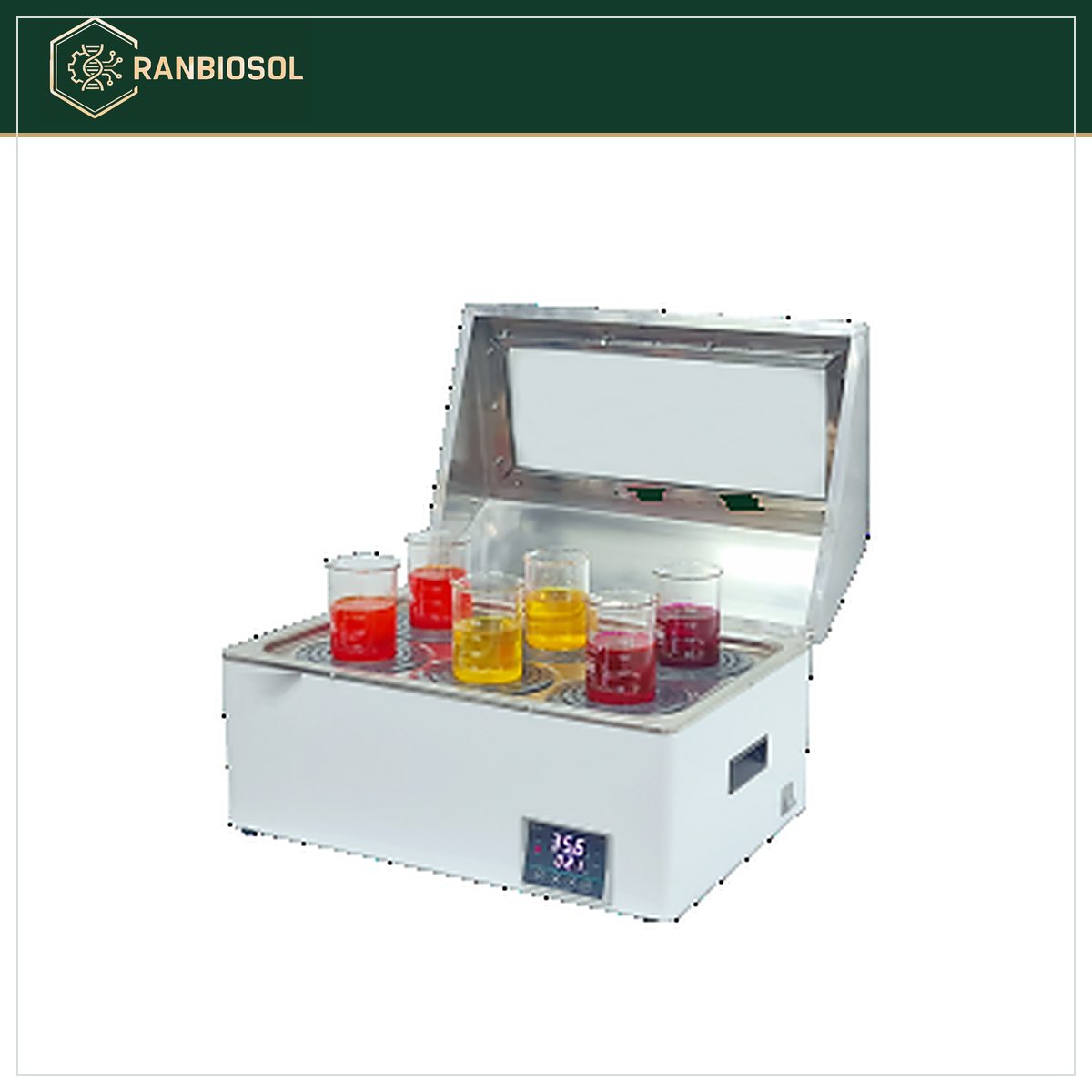

MULTI – UTILITY WATER BATH RBS MSW-272(PRO-MP)
This is a small description
- Selection support
- Configuration guidance for your application
- Delivery
- Pan-India coordination from Mohali
- After-sales
- Installation, calibration and maintenance support
Product details
Features and construction
Applications
- With Transparent See Thru Window and Gabled Lid and Demountable Top Lid with Holes and Concentric Rings.
Features
- Anti-dry technology.
- Concave surface to avoid liquid.
- No interface, no welding seam. Stainless steel material.
- Size of hole can be customized/ adjusted.
- Inner chamber made of stainless steel and outer made of mild steel.
- Temperature can be set freely with timing function.
- Anty-dry Technology: Automatically stop heating when the water level is lower than the heating tube, which is safer.
- Concave Control Panel: Concave surface to protect the panel being destroyed by the overflowed. Double digital display easy to show temperature.
- Stainless Steel Tank: The Tank using amolding technology. No interface, no welding seam to avoid rusting and leaking. The circular arc form would be easy to clean.
- Stainless Steel Heating Tube:Precise temperature control and heating. To keep it at good working performance, pls dry off while finished to use.
- Stainless Steel Holder: The stainless steel carrier in the tank, the thickness is more than 1 mm.
- Adjustable Cap: Ring cap made of PP, much durable and better sealing. The hole size could be adjusted by the user.
- Invisible Outfall: With a plug-out pipe, beautiful and durable and convenient.
- Lid: Multi utility bath having demountable concentric ring lid various number of adjustable size holes and a unique see-thru gabled lid with glass window for real time observation of the sample.
Technical data
Specifications and models
| MODEL | WORKING CHAMBER DIMENSIONS | NUMBER OF HOLES MENTION RING DIA + MOULDED PP | DISPLAY | LOW WATER HEATER BURN OUT PREVENTION |
|---|---|---|---|---|
| #RBS MPB-1 (PRO) | 160x160x130 mm | 1 of 120 mm + 5 Nos. | Digital Display & Timer | Yes |
| #RBS MPB-2 (PRO) | 300x150x140 mm | 2 of 120 mm + 5 Nos. | Digital Display & Timer | Yes |
| #RBS MPB-4 (PRO) | 300x300x140 mm | 4 of 120 mm + 5 Nos. | Digital Display & Timer | Yes |
| #RBS MPB-6 (PRO) | 450x300x130 mm | 6 of 120 mm + 5 Nos. | Digital Display & Timer | Yes |
| #RBS MPB-8 (PRO) | 600x300x130 mm | 8 of 120 mm + 5 Nos. | Digital Display & Timer | Yes |
