WATER BATH

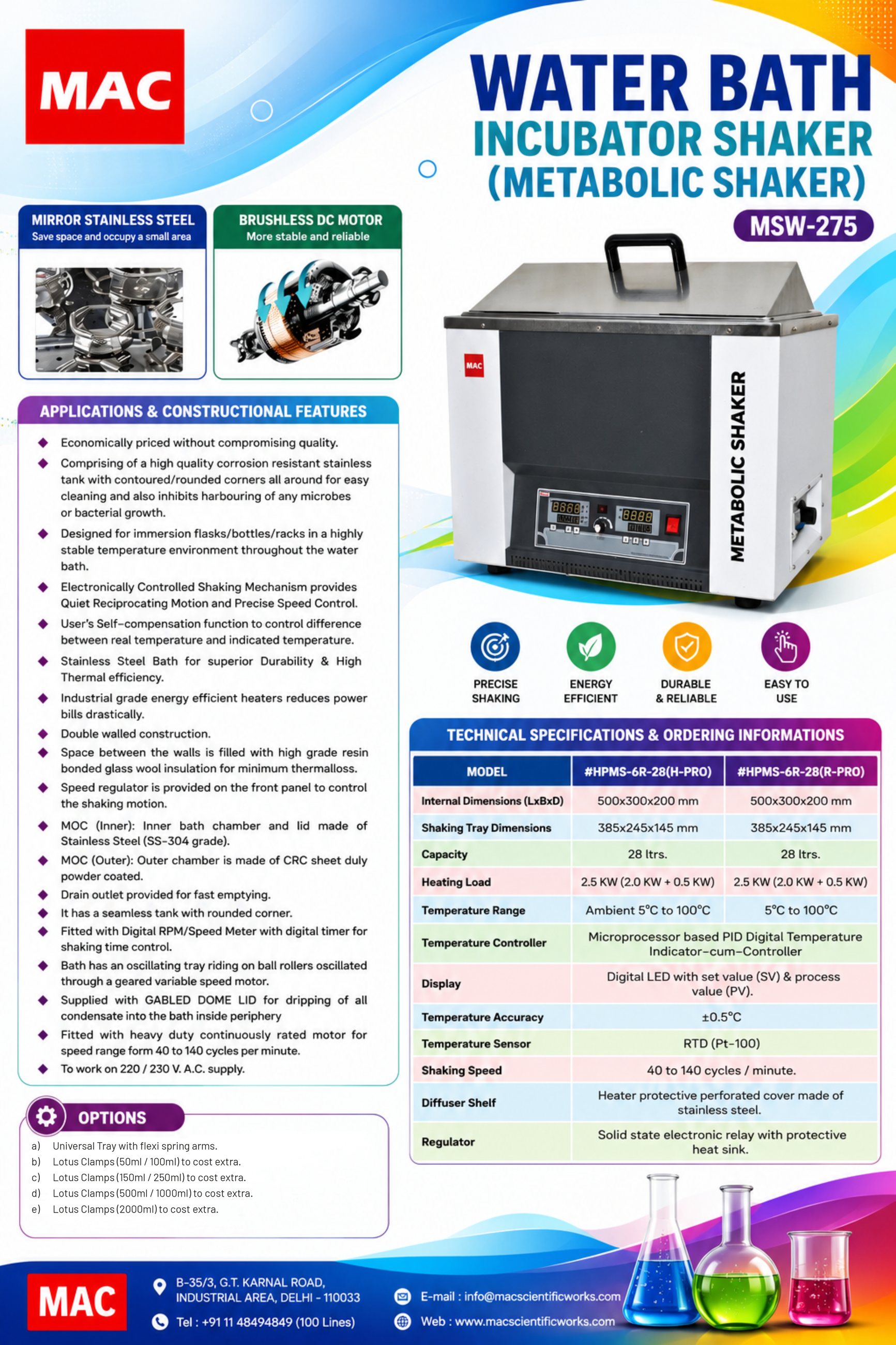

WATER BATH INCUBATOR SHAKER (METABOLIC SHAKER) RBS MSW-275
This is a small description
- Selection support
- Configuration guidance for your application
- Delivery
- Pan-India coordination from Mohali
- After-sales
- Installation, calibration and maintenance support
Product details
Features and construction
features
- Economically priced without compromising quality.
- Comprising of a high quality corrosion resistant stainless tank with contoured/rounded corners all around for easy cleaning and also inhibits harbouring of any microbes or bacterial growth.
- Designed for immersion flasks/bottles/racks in a highly stable temperature environment throughout the water bath.
- Electronically Controlled Shaking Mechanism provides Quiet Reciprocating Motion and Precise Speed Control.
- User’s Self-compensation function to control difference between real temperature and indicated temperature.
- Stainless Steel Bath for superior Durability & High Thermal efficiency.
- Industrial grade energy efficient heaters reduces power bills drastically.
- Double walled construction.
- Space between the walls is filled with high grade resin bonded glass wool insulation for minimum thermal loss.
- Speed regulator is provided on the front panel to control the shaking motion.
- MOC (Inner): Inner bath chamber and lid made of Stainless Steel (SS-304 grade).
- MOC (Outer): Outer chamber is made of CRC sheet duly powder coated.
- Drain outlet provided for fast emptying.
- It has a seamless tank with rounded corner.
- Fitted with Digital RPM/Speed Meter with digital timer for shaking time control.
- Bath has an oscillating tray riding on ball rollers oscillated through a geared variable speed motor.
- Supplied with GABLED DOME LID for dripping of all condensate into the bath inside periphery
- Fitted with heavy duty continuously rated motor for speed range form 40 to 140 cycles per minute.
- To work on 220 / 230 V. A.C. supply.
Option
- Universal Tray with flexi - spring arms.
- Lotus Clamps (50ml / 100ml, 150ml / 250ml, 500ml / 1000ml, 2000ml) to cost extra.
Technical data
Specifications and models
| Model | #RBS HPMS-6R-28(H-PRO) | #RBS HPMS-6R-28(R-PRO) |
|---|---|---|
| Internal Dimensions (LXBXD) | 500x300x200 mm | 500x300x200 mm |
| Shaking Tray Dimensions | 385x245x145 mm | 385x245x145 mm |
| Capacity | 28 Ltrs. | 28 Ltrs. |
| Heat Load | 2.5 KW (2.0 KW + 0.5 KW) | 2.5 KW (2.0 KW + 0.5 KW) |
| Temperature Range | Ambient +5°C to 100°C | 5°C to 100°C |
| Temperature Controller | Microprocessor Based PID Digital Temperature Indicator–cum-Controller | |
| Display | Digital LED with set value (SV) process value (PV) | |
| Temperature Accuracy | ±0.5°C | |
| Temperature Sensor | RTD (Pt-100) | |
| Shaking Speed | 40 to 140 cycles/minute | |
| Diffuser Shelf | Heater protective perforated cover made of stainless steel | |
| Regulator | Solid state electronic relay with protective heat sink. | |
| Clamps | With 1 set of lotus clamps as a standard accessory | |
